High-Performance 8-Channel Wireless Switch for Relays 12V, 433MHz, Receiver and Transmitter

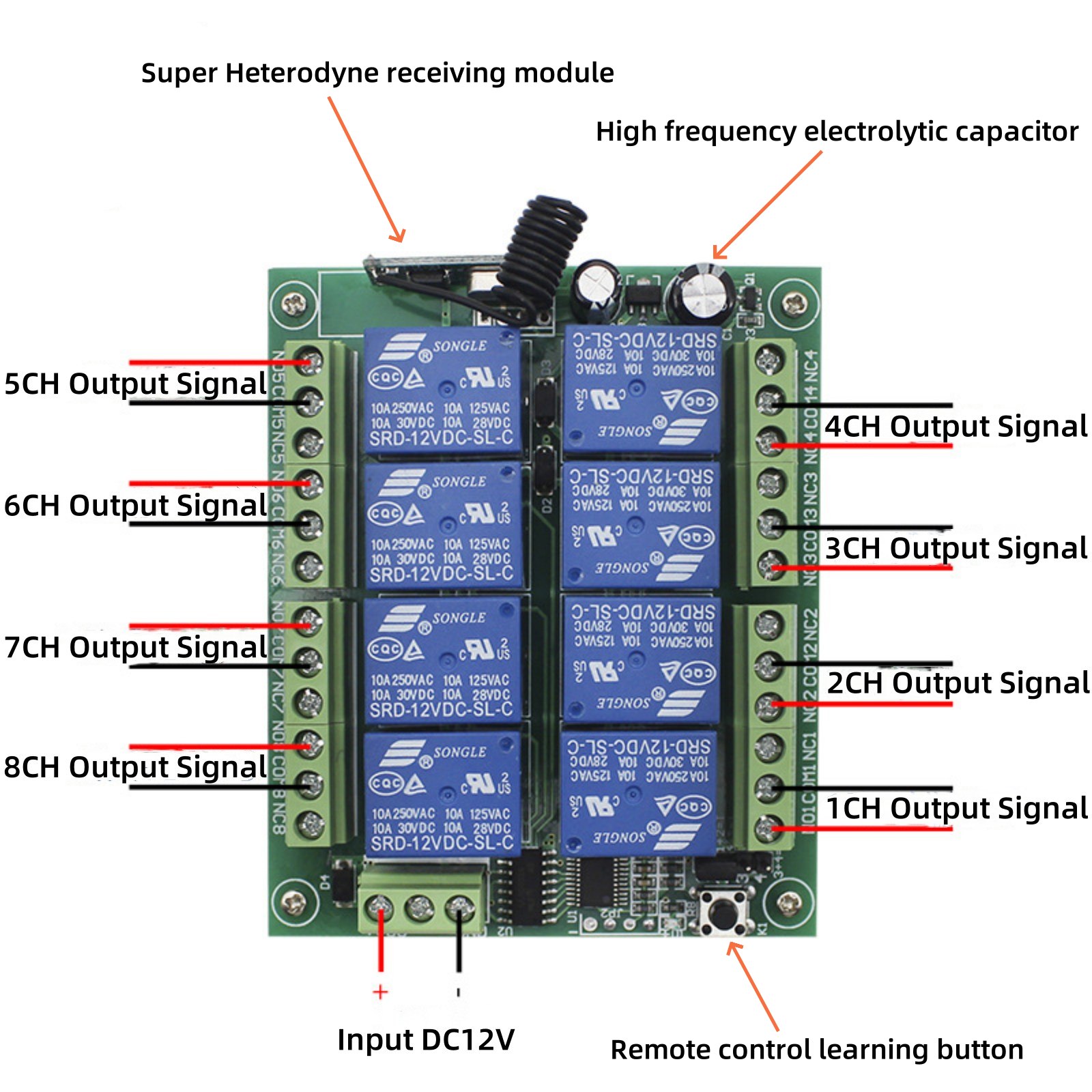

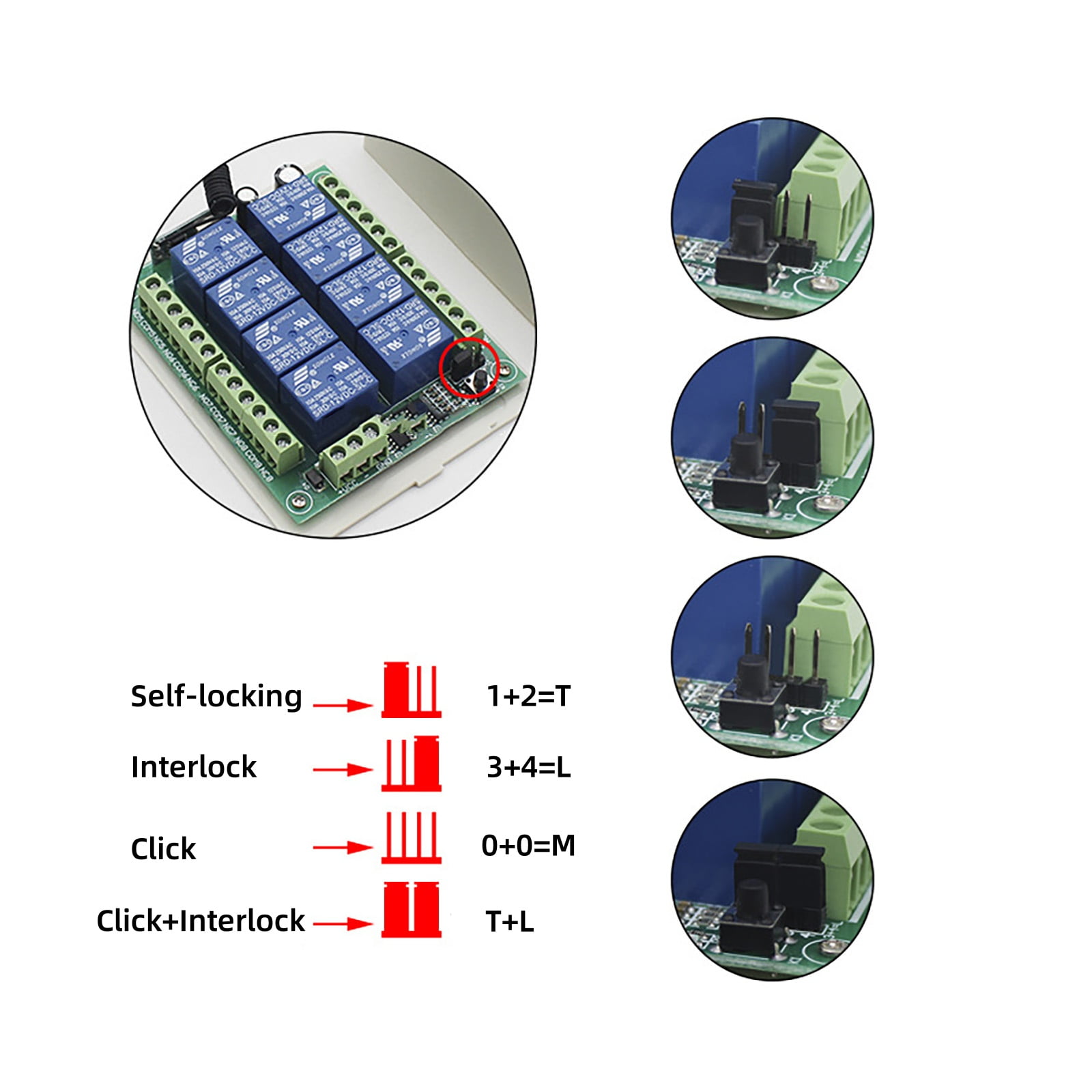

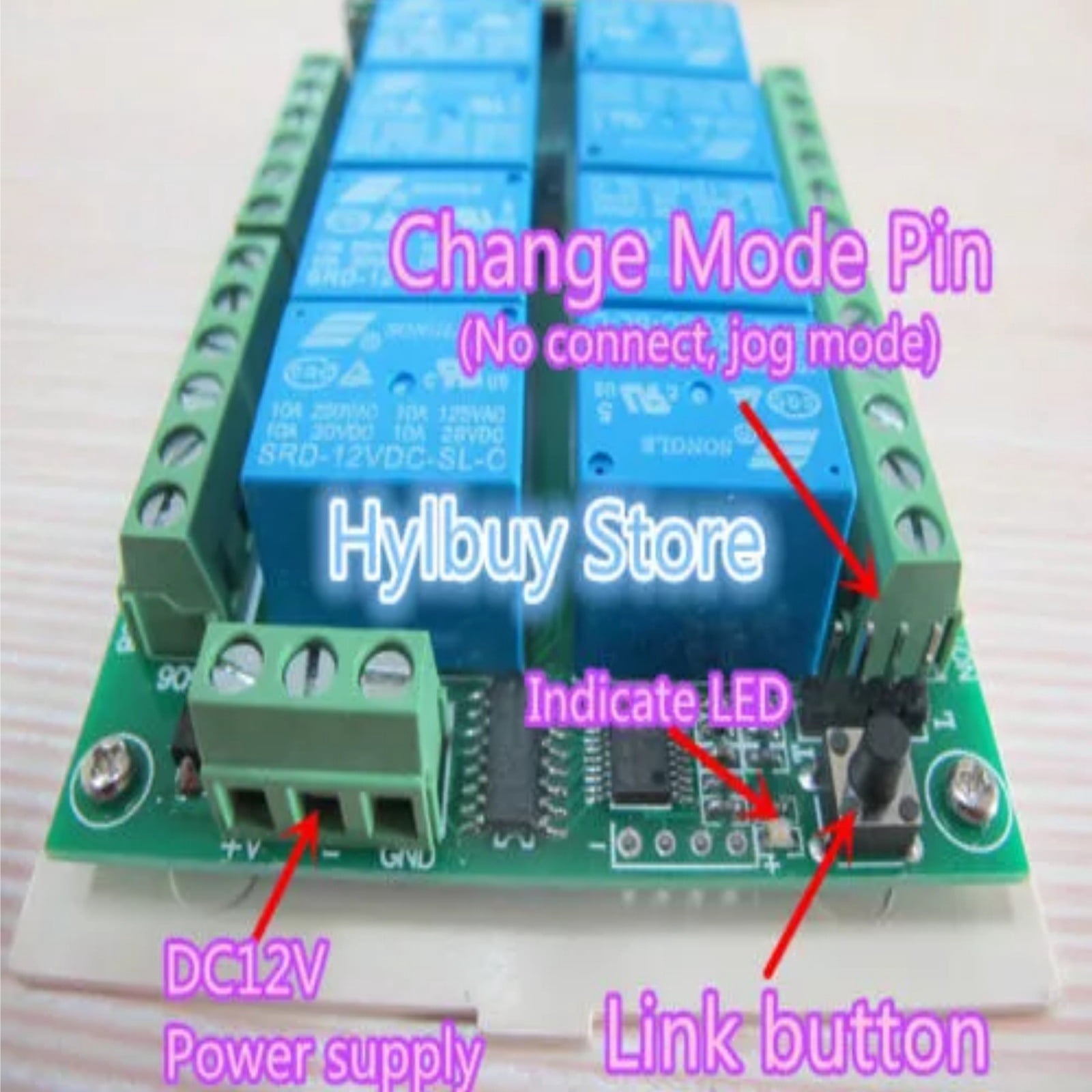

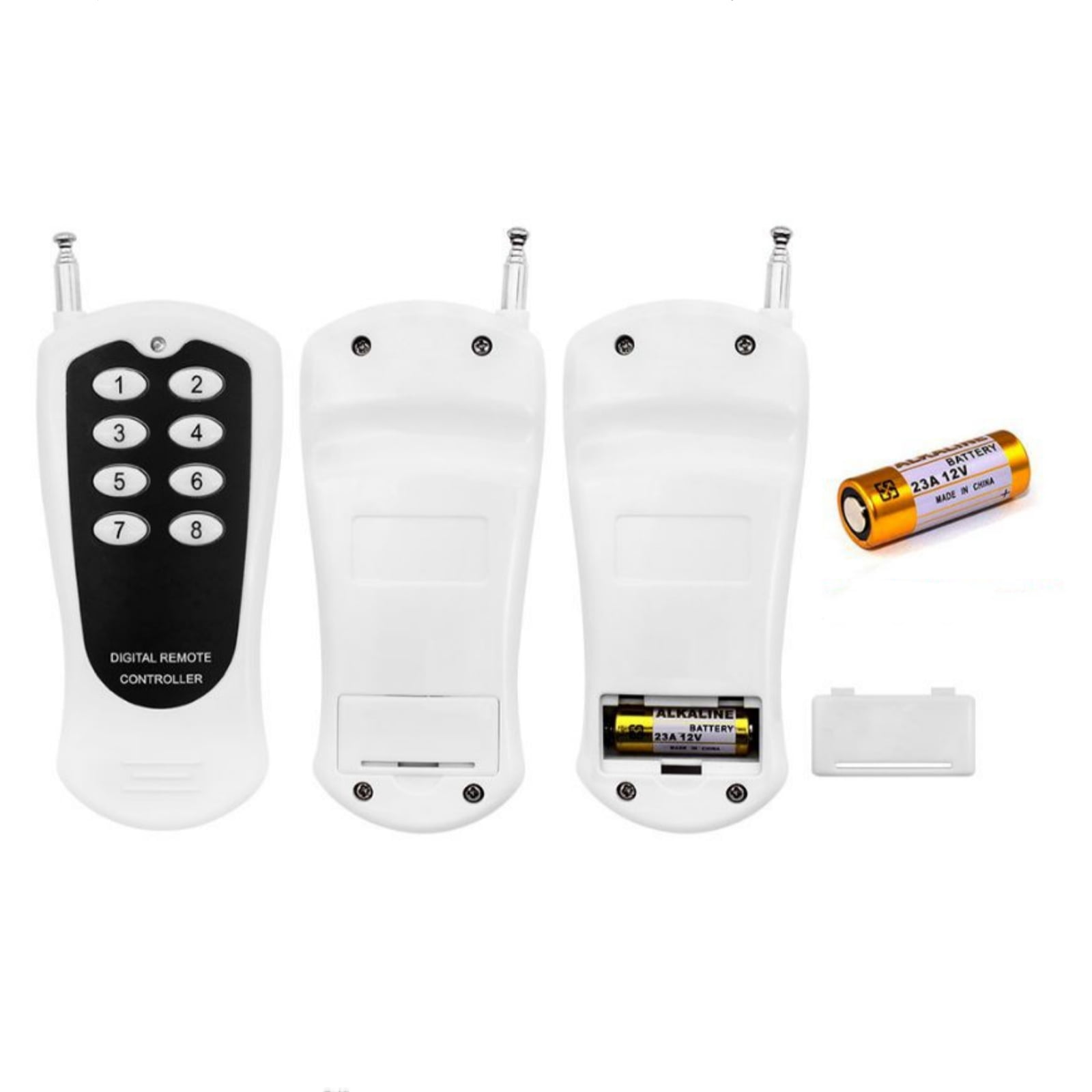

Features: <br>Multi Functional Eight Channel Wireless Intelligent Remote Control Switch, Outputting Switch Signals For Eight Relays, Can Enable The Controlled Equipment Or Motor To Meet The Requirements Of Switch Or On/Off Conversion, As Well As Various Special Control Programs <br>The Wireless Receiver Controller Has The Characteristics Of High Confidentiality, Stable Performance, Low Power Consumption, And Is Easy To Use, <br>By Using The Traditional Jumper Cap Adjustment Function, The Wireless Signal Transmitted By The Remote Control Can Be Received And Saved By The Receiving Controller, And It Can Be Used Together. <br> <br>Specifications: <br>Frequency: 433mhz <br>Operating Voltage: 12V DC <br>Decode: Learning Code <br>Operating Type: Self Locking T, Interlock L, Jogging M, Self Locking Interlock T+L <br>Remote Control Battery: 1* 23A 12V Battery(Battery Included) <br>Transmitting Distance: 1000m <br><br>Learning Methods:<br>Self Locking Learning Method: Short Circuit The Jumper Cap To 1+2=T, Press The Learning Button, And The Red Light Will Turn Off Within 7 Seconds To Verify The Code. <br>Interlock Learning Method: Short Circuit The Jumper Cap With 3+4=L, Press The Learning Button, And The Red Light Will Turn Off Within 7 Seconds To Verify The Code <br>Jogging Learning Method: Do Not Plug In The Jumper Cap, Press The Learning Button, And The Red Light Will Turn Off Within 7 Seconds To Check The Code, <br>Self Locking+Interlocking Learning Method: Insert 2 Jumper Caps, 1/2/3/4 Self-Locking, 5/6/7/8 Interlocking. <br>Code Clearing Method: Press And Hold The Learning Button For 10 Seconds, The Led Indicator Light Flashes For 5 Seconds, And The Code Clearing Is Complete, <br>*(Attention: When Switching Working Modes, Please Turn Off The Power And Then Plug In The Power To Clear And Match The Code) <br> <br>Working Modes: <br>Self Locking T: Press The Same Remote Control Button, Press Once To Turn On The Relay, Press Again To Turn Off The Relay. <br>Interlock L: Press The 1 Key On The Remote Control To Turn On The Relay, Press The 2 Key On The Remote Control To Turn Off The Relay. <br>Jogging M: Press The 1 Key On The Remote Control To Turn On The Relay, Release The 1 Key On The Remote Control To Turn Off The Relay. If You Keep Pressing The 1 Key And Don' T Release It, The Relay Will Remain On. When You Release It, The Relay Will Turn Off. <br>Self Locking Interlock T+L: 1/2/3/4 Way Self-Locking, 5/6/7/8 Way Interlocking. <br><br>Package Including: <br>1* Receiver <br>1* Transmitter
