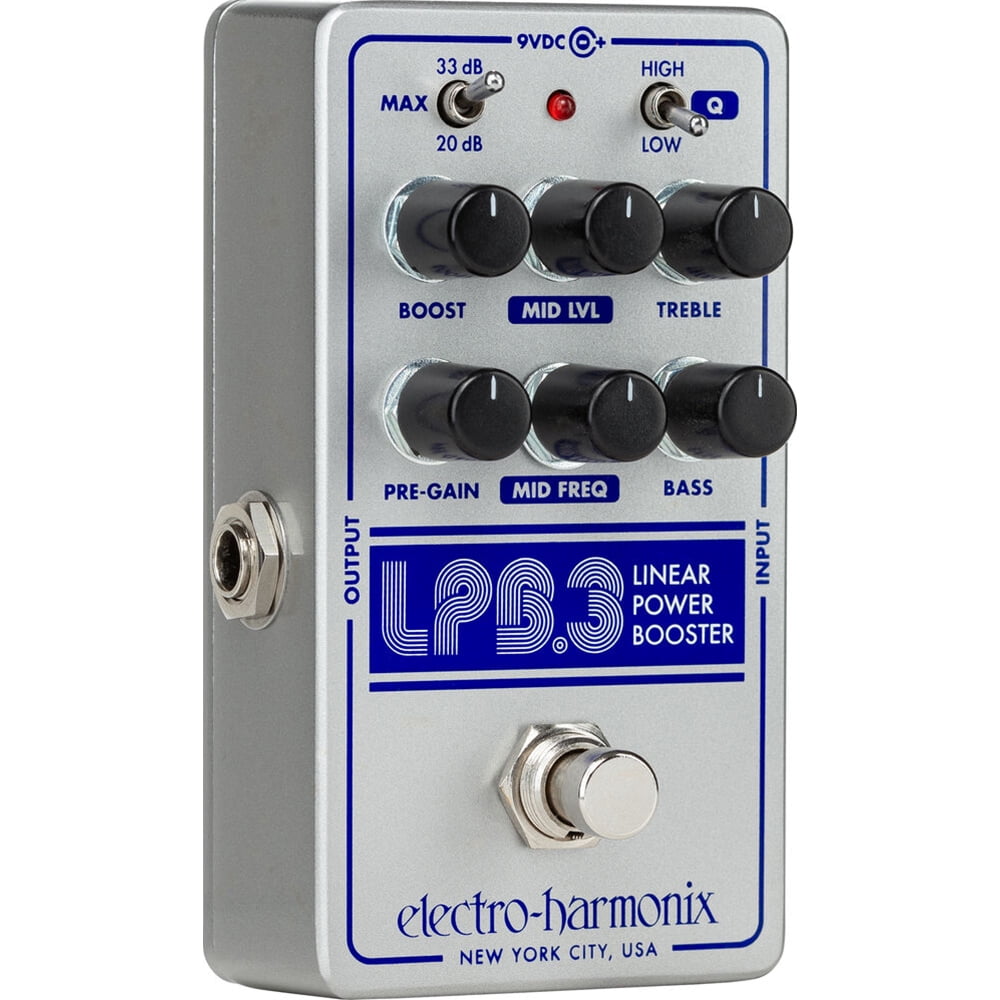

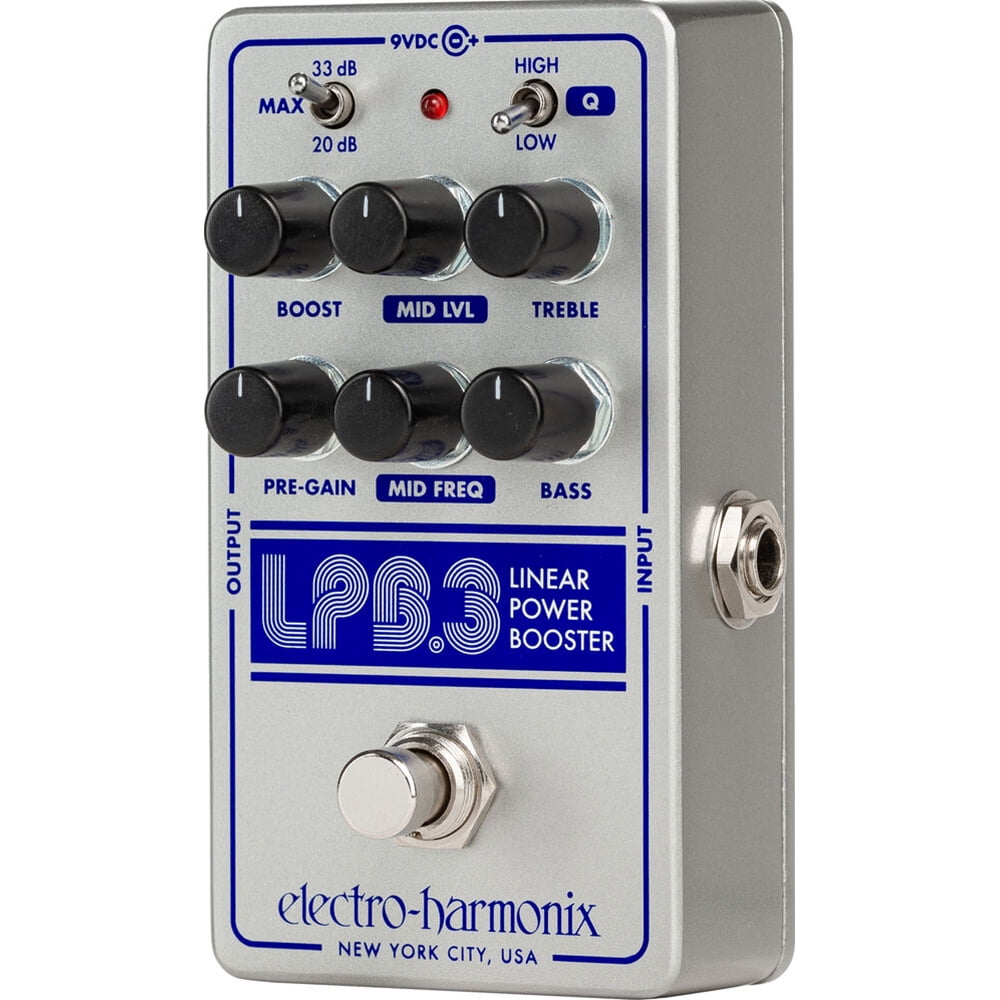

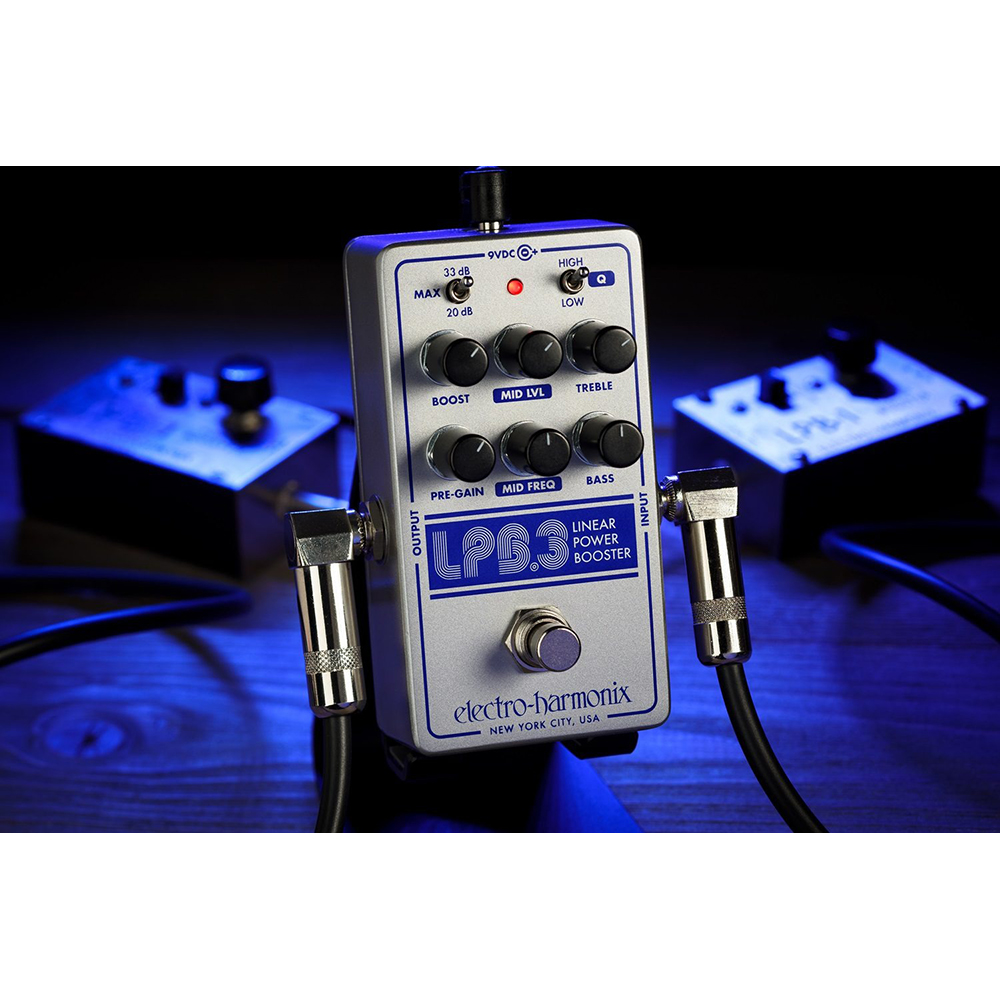

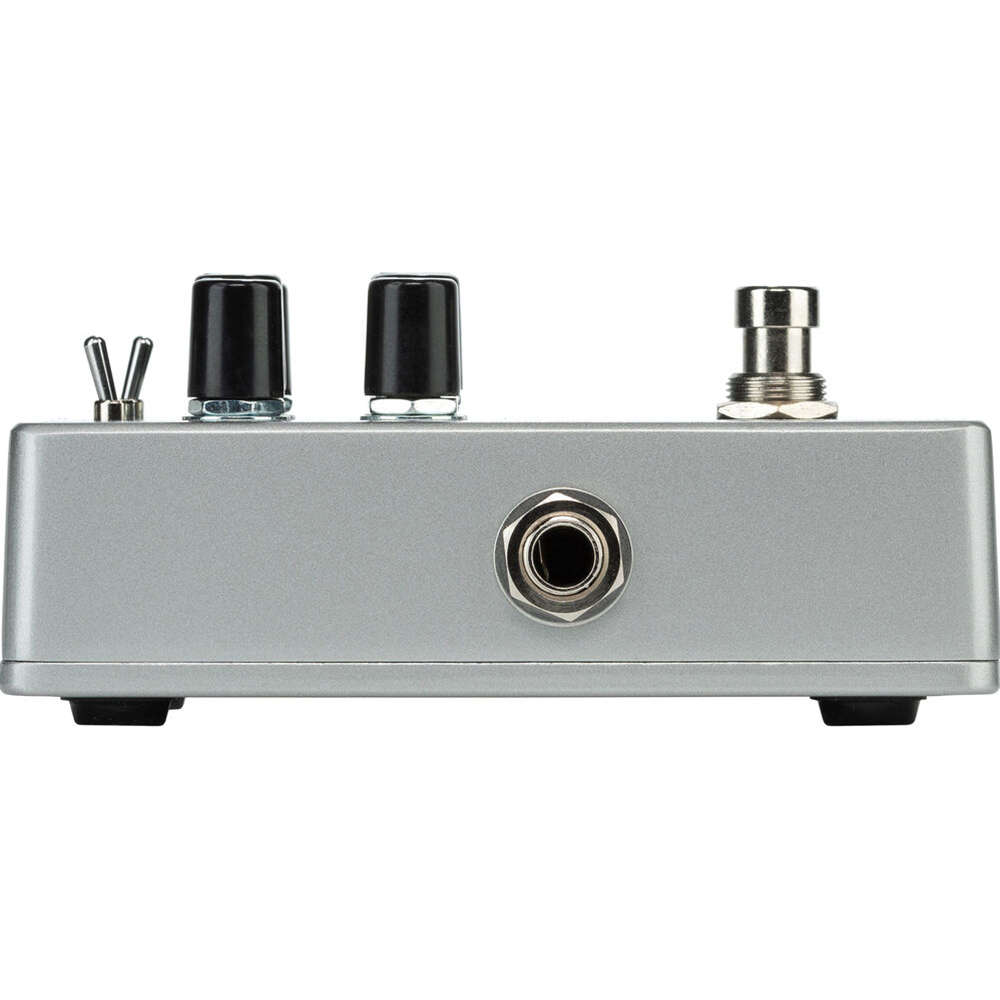

Electro-Harmonix LPB-3 Linear Power Booster and EQ Pedal

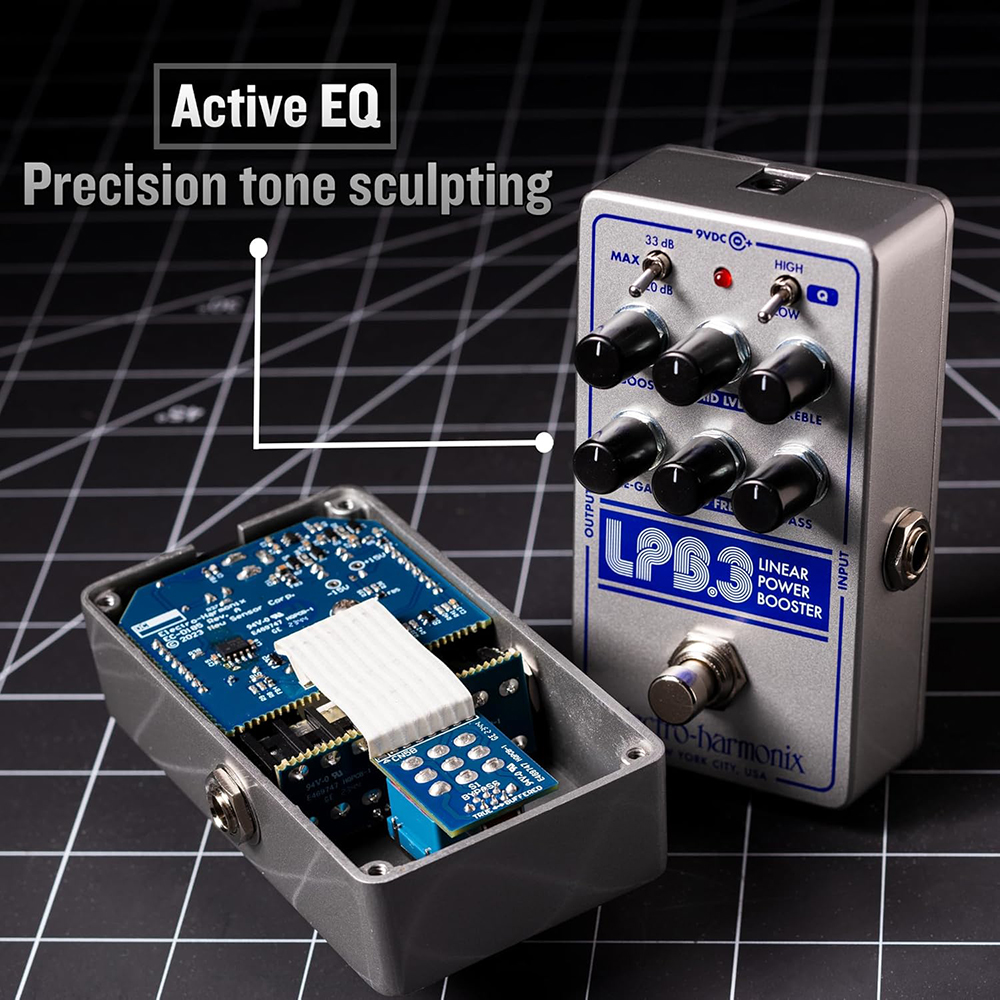

EHXLPB3 <br><br><ul><li>Electro-Harmonix LPB-3 Linear Power Booster and EQ Pedal</li><li>9.6V DC 200mA AC Adapter</li><li>Owner's Manual</li><li>Warranty Documentation</li></ul><p><strong>Electro-Harmonix LPB-3 Linear Power Booster &amp; EQ</strong></p><p>Sculpt your tone to any shape with the LPB-3!</p><p>The effect that launched Electro-Harmonix gets a makeover with the Electro-Harmonix LPB-3 Linear Power Booster &amp; EQ. With an active EQ featuring a powerful Parametric Mids control and up to a walloping 33dB of boost, the LPB-3 is the perfect tool for any tone tailoring task. Boost your sound into saturated bliss with transformative precision like never before.</p><p>Housed in EHX’s Nano-sized chassis, the LPB-3 is capable of boosting up to +33dB of clean gain with the powerful tone shaping of a 3-band EQ with parametric Mids. The active 3-Band EQ features TREBLE and BASS knobs to control the highs and lows plus a powerful parametric Mids control with adjustable MID FREQ and Q. BOOST sets the overall output of the pedal with the MAX switch toggling between 20dB and 33dB of maximum boost. Use the PRE-GAIN knob to fine-tune the total gain and volume of the boost.</p><p>This booster pedal’s additional features include selectable Buffered/True Bypass switching and internally extended 30V power rails for enhanced headroom.</p><p><strong>Product Highlights:</strong></p><p style="padding-left: 30px;">Active EQ for precision tone sculpting</p><p style="padding-left: 30px;">Parametric MIDS section cuts through any mix</p><p style="padding-left: 30px;">Up to 33dB of boosting power</p><p style="padding-left: 30px;">High voltage rails, extended headroom</p><p style="padding-left: 30px;">Selectable Buffered/True Bypass</p><p style="padding-left: 30px;">Inspired by the effect that launched Electro-Harmonix in 1968, the LPB-1!</p><p><strong>Product Features:</strong></p><p style="padding-left: 30px;"><strong>Power Jack:</strong> Insert the output plug of the supplied AC Adapter into the power jack. The LPB-3 requires 120mA at 9VDC on centernegative plug. Do not exceed 12VDC at the power jack. The LPB-3 does not take batteries.</p><p style="padding-left: 30px;"><strong>Max Switch:</strong> Boosts the gain at the output stage, and sets the maximum gain of the LPB-3 - from Input to Output - to either 33dB or 20dB. Set MAX to 20dB for greater dynamics; set MAX to 33dB to drive the signal harder and potentially send your amp into saturation along with higher BOOST knob settings.</p><p style="padding-left: 30px;"><strong>MID LVL Knob:</strong> Boosts or cuts the MID EQ. Turn the MID LBL knob clockwise from its noon position to boost the MID EQ frequency. Turn MID LBL counterclockwise to cut MID EQ. Set MID LVL to its center position for a flat MID EQ response.</p><p style="padding-left: 30px;"><strong>Treble Knob:</strong> Boosts or cuts frequencies above 3.25kHz. Turn the TREBLE knob clockwise from noon to boost the high end. Turn the knob counterclockwise to cut highs. Set TREBLE to its center position for a flat treble response.</p><p style="padding-left: 30px;"><strong>Pre-Gain Knob:</strong> Adjusts input gain from 0dB (unity) to 20dB before the signal hits the EQ circuitry. Use PRE-GAIN in conjunction with BOOST and MAX to fine-tune the total volume and gain through the LPB-3. Pro tip: If the EQ knobs are set in the boost half of their range, signal clipping can be avoided by decreasing PRE-GAIN. IF the EQ settings are set to cut, turn up PRE-GAIN for more volume.</p><p style="padding-left: 30px;"><strong>MID FREQ Knob:</strong> Adjusts the MID EQ center frequency, which is boosted or cut by the MID LVL knob. The frequency range of this knob is 240Hz to 3.3kHz. Pro tip: For a brighter sound, try cutting the low MIDs by setting MID FREQ to 10 ...<br><br></p>

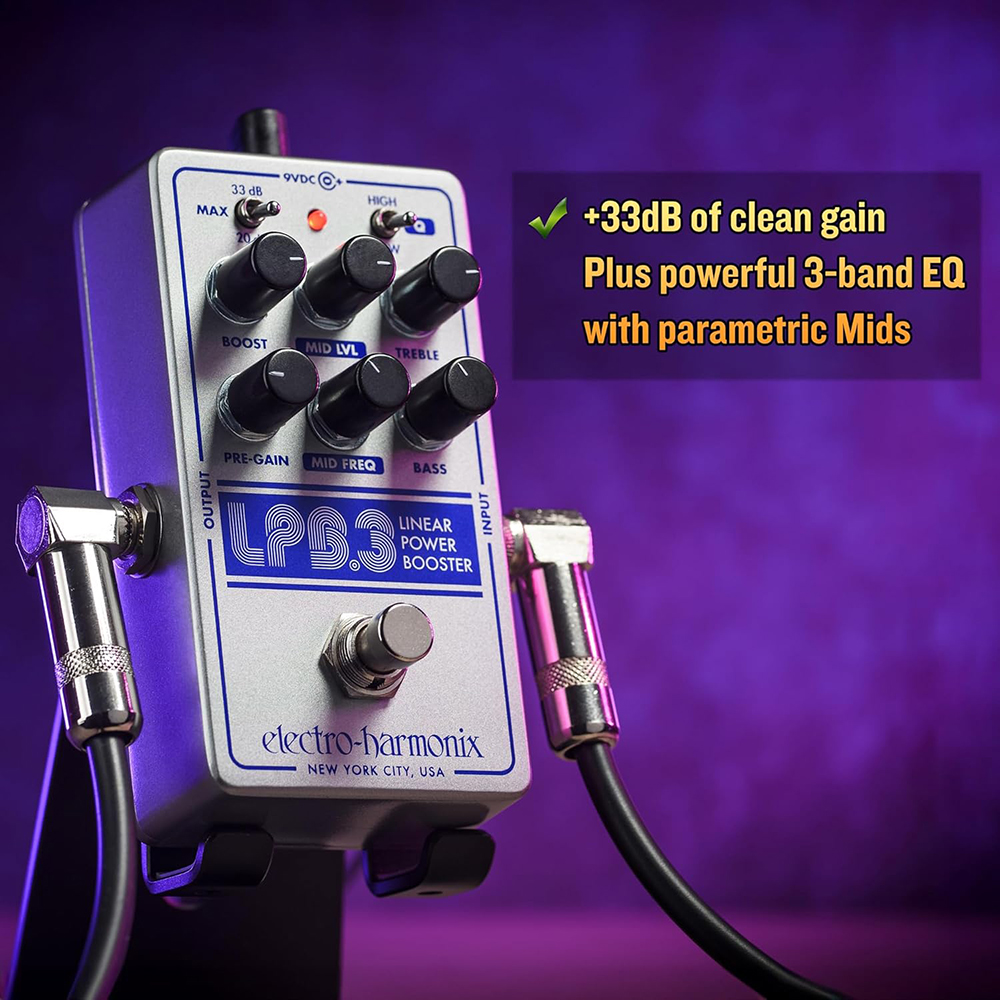

• With up to 33dB of boost and a 3-band EQ with parametric mids, you can shape your core tone and push your amp into saturated overdrive
• The LPB-3 packs big tone in a compact, pedalboard-friendly size
• Adjust the amount of boost with the Boost knob, then fine-tune your tone with the 3-band EQ
• The Bass and Treble knobs provide up to 15dB of cut or boost, while the Parametric Mids section lets you select the frequency range and intensity of the midrange boost
• With the LPB-3, you can achieve the perfect balance of lows, mids and highs for your guitar and amp

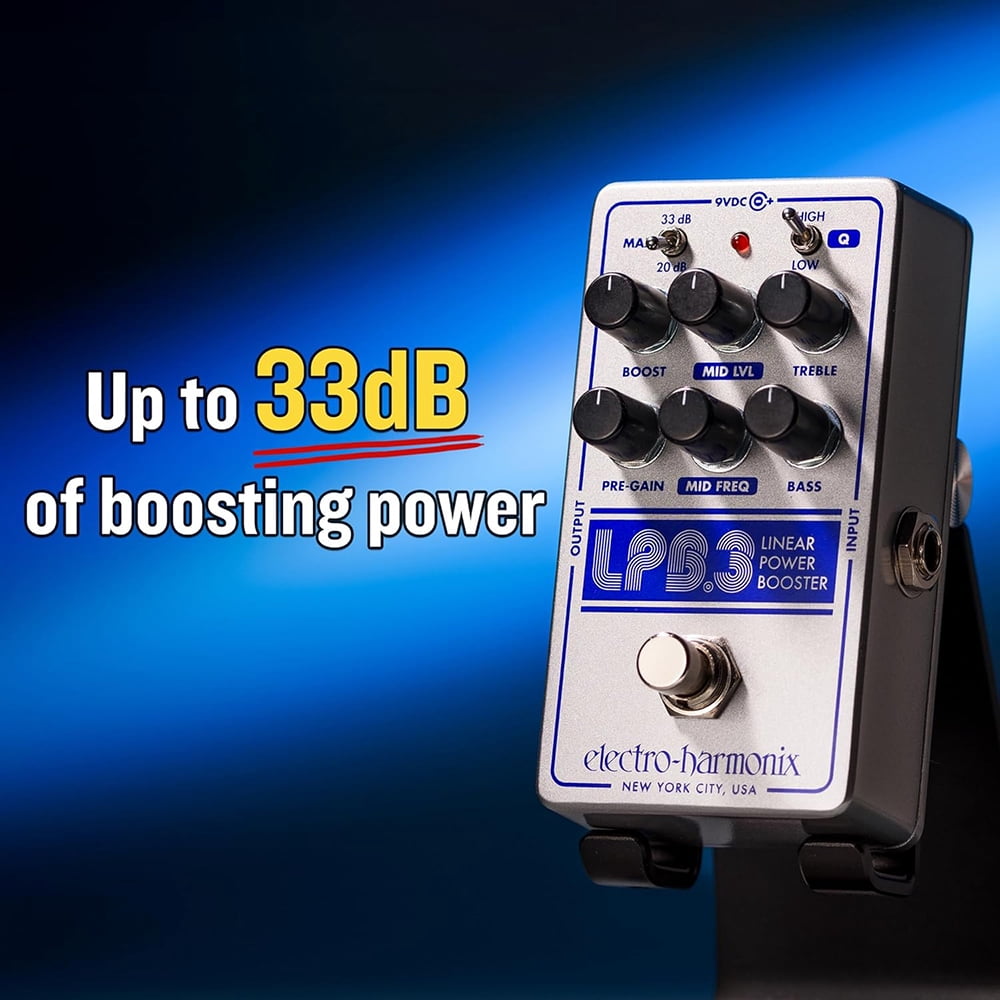

• The Boost knob sets the maximum amount of gain boost, from 0 to 33dB
• The Bass, Treble and Parametric Mids knobs make it simple to adjust the EQ to your liking
• An EQ bypass switch lets you compare tones with the EQ engaged and bypassed
• Two additional switches select between 20dB and 33dB of maximum boost and buffered or true bypass
• The LPB-3 strikes an ideal balance of simplicity and versatility

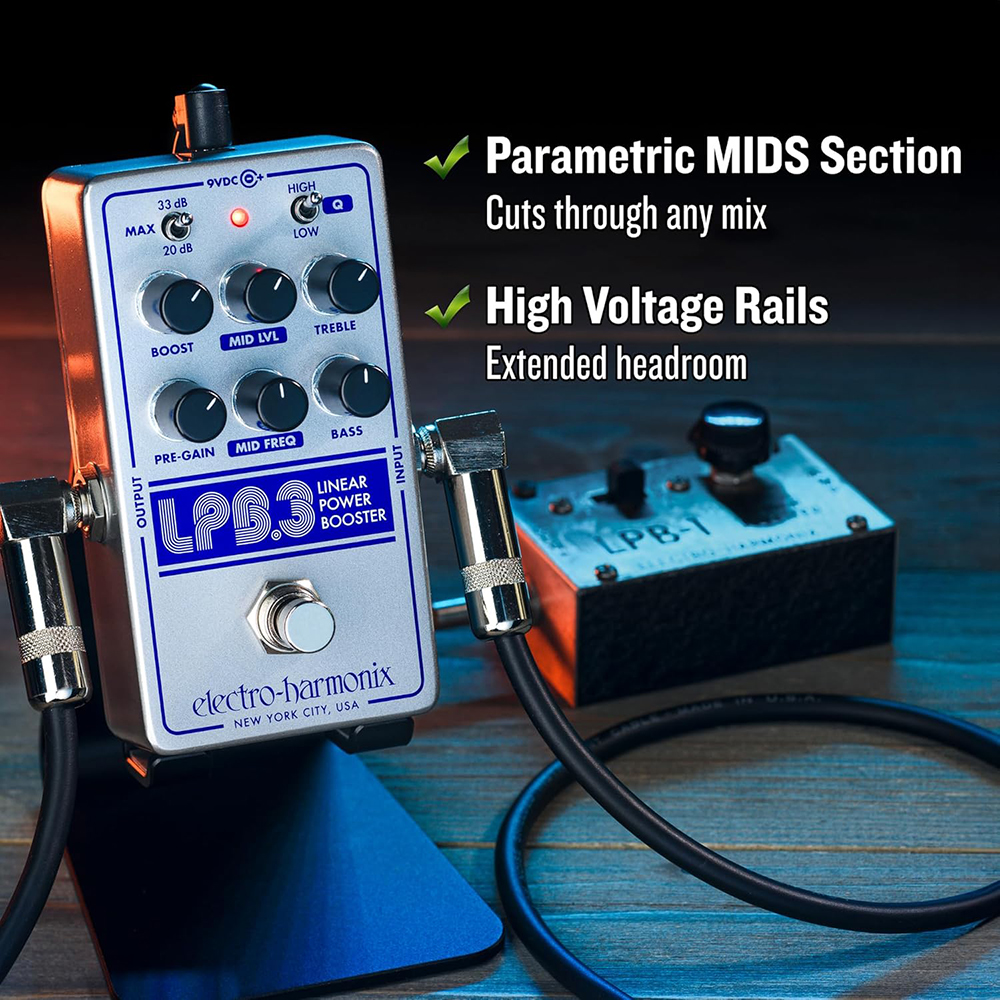

• Select the precise midrange frequency you want to boost or cut, from 200 Hz up to 5 kHz, then dial in the bandwidth to broadly or narrowly target those mids
• With this level of control over the midrange, you can eliminate muddy tones or bring shimmering high mids into focus
• The LPB-3 gives you a new level of mastery over the most important part of your tone
• Choose between buffered or true bypass switching to maintain your signal integrity in all situations
• With the LPB-3, you have a professional grade boost and EQ solution in a pedalboard-friendly size
• As an updated version of the original LPB-1, the LPB-3 provides the iconic EHX boost in a compact, full-featured pedal
• Get a piece of music history with the power and tone-sculpting capabilities of the Electro-Harmonix LPB-3
